Example content

Inkwell ships a complete demo inside the plugin: a showroom map you can press Play in with nothing configured, the documents and props it displays, a journal prop Blueprint, four Enhanced Input actions with a ready-made mapping context, and a read-prompt widget. They exist so you can see everything the plugin does within two minutes of enabling it, and so you have finished content to pull apart in the Page Editor.

​

Finding the content

​

The showroom: L_InkwellShowroom

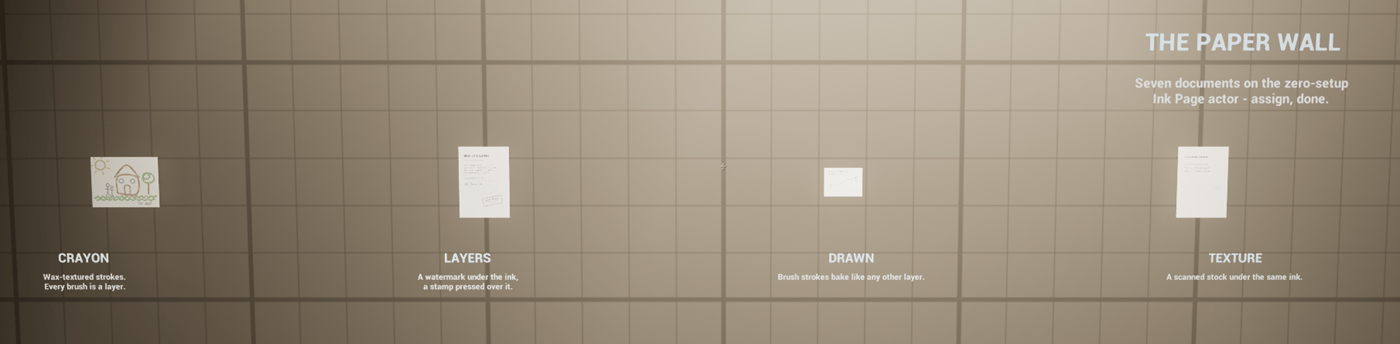

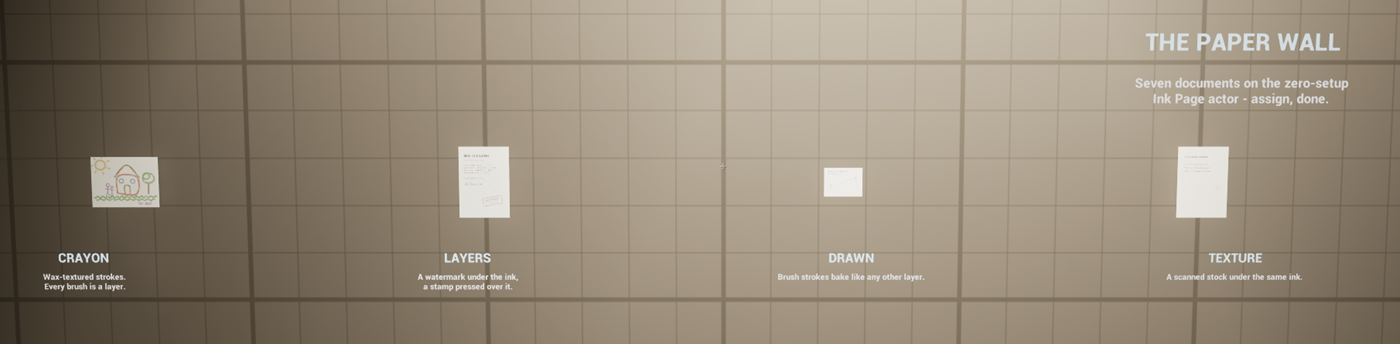

/Inkwell/Maps/L_InkwellShowroom — one long gallery hall that demonstrates the whole feature set in a single walk. Open it and press Play; it needs nothing from your project. It plays out of the box because the map’s GameMode Override is AInkwellReaderGameMode, whose default pawn is AInkwellReaderCharacter — a first-person reader pawn shipped in the plugin. The pawn’s move and look input is Enhanced Input built at runtime in C++, so no project input assets are involved; its page interaction comes from the bundled Ink Page Interactor’s demo keys and the reader’s flip key, which bind themselves. The walk, in the order you meet things: The paper wall. Just inside the door: seven flat pages hung at eye height, each on the zero-setup Ink Page actor — assign a document, done. One per paper treatment: generated lined stock (with margin rule and punch holes), the same generator ruled as grid and as dots, a scanned texture under the same ink, a page of brush drawings, a layered page (a watermark under the ink, a stamp pressed over it), and a child’s crayon drawing. The documents are PD_PaperLined, PD_PaperGrid, PD_PaperDotted, PD_PaperTexture, PD_Drawn, PD_Layers, and PD_Crayon in /Inkwell/DemoProps/Documents/ — and each opens in the Page Editor exactly as it hangs. Six podium exhibits, easy cases nearest the door: The poster, on the far wall: PD_Poster on a poster-board mesh, drawn into material slot 1 through a quarter-turned Page Face mapping, wearing its own Custom Material — and its display component’s Can Be Picked Up is off, so it is scenery. A poster glued to a wall that leaps into the player’s hands would break the fiction; this is the flag that prevents it.

​

The demo documents

All bundled documents share the PD_ prefix. The showroom’s live in /Inkwell/DemoProps/Documents/; the journal lives at /Inkwell/Examples/PD_InkwellJournal. Every one is an ordinary Ink Page Document — double-click any of them to open it in the Page Editor and see exactly how it was authored: which paper mode, which layers, which styled runs. The best single reference is PD_InkwellJournal, the five-page journal the stack displays: each page deliberately uses a different hand, so it shows all five bundled font families and every text style — bold, italic, underline, strikethrough, colored ink — in one document. Open it and click into any run: the toolbar shows the exact font, typeface, size, and color that run carries, which is the quickest way to learn how the markup is put together.

​

BP_InkwellJournalStack

/Inkwell/Examples/Blueprints/BP_InkwellJournalStack — an Actor Blueprint with exactly two things in it: a default scene root, and an Ink Page Stack component named PageStack with its Document set to PD_InkwellJournal. There is no Event Graph logic at all. That is the point: a readable multi-page prop is a component and a document reference. To place it: drag the Blueprint from the Content Browser into any level. The journal appears as a physical pile of sheets, one mesh per page, the current page on top and the rest squared up underneath — no Play needed. It is also a live playground for the stack’s look. Select the placed actor and drag Sheet Gap, Fan Splay, Fan Angle, Stack Yaw — or switch Page Turn Style between Glide and the theatrical Arc — and the pile re-lays itself in the editor viewport as you drag. See Ink Page Stack for what each property does.

​

The Enhanced Input assets

/Inkwell/Examples/Input/ holds four Input Action assets — IA_Interact, IA_NextPage, IA_PreviousPage, IA_PutBack, the plainest possible button actions, with no logic in them — and IMC_InkwellDefault, an Input Mapping Context binding them to E, Right, Left, and Q, plus mouse wheel variants of the two page turns. These are for your own pawn: the demo character does not use them (its input is built in code). Add IMC_InkwellDefault to your pawn with Add Mapping Context — or add the four actions to your own IMC under your own keys — and bind the action events to the reader’s functions. The wiring is spelled out in Integration.

​

The Inkwell Exhibit component

Inkwell Exhibit (UInkwellExhibitComponent) is per-exhibit interaction tuning for the demo room — and only the demo room. Deliberately, nothing in the plugin knows the class exists: it listens to the reader’s public delegates and writes the reader’s public properties, which is exactly what your own game-side tuning component would do. That makes it a worked example of driving the reader from game code, as well as the showroom’s convenience. It sits on an exhibit actor and, while the player is reading that exhibit, pushes its overrides into the pawn’s reader — restoring everything the moment the page goes down: The static Find For Page function returns the exhibit component on the actor a page belongs to — the one call a prompt widget needs to know whose prompt lines to show.

​

WBP_InkwellReadPrompt

/Inkwell/Examples/UI/WBP_InkwellReadPrompt — the demo’s crosshair-and-prompt widget, created on screen by the demo character. It is a Widget Blueprint reparented onto the C++ base UInkwellReadPromptBase, which composes the prompt line from what the page actually is: a multipage document gets “Turn page” and a page counter, a single sheet with an authored back gets “Flip over” (then “Flip back” once it is showing its back), and a plain single sheet gets no turning prompt at all. An Inkwell Exhibit component on the page’s actor overrides the whole line whenever its prompt fields are non-empty. It finds the pawn’s Ink Page Interactor and Ink Page Reader itself and works with no other setup, provided the pawn carries both components.

​

What to copy, and what to leave

​
