Ink Page Stack (UInkPageStackComponent) shows an Ink Page Document as a physical stack of paper. It spawns one sheet mesh per page, puts the current page on top and squares the rest up underneath in reading order. Turning a page sends the top sheet to the bottom and eases the rest up one place — Page Turn Style says how that move looks — so a multipage journal reads like paper rather than a texture swap. It extends Ink Page Display and is a drop-in replacement for it: put it on an actor, assign a document, done. The whole page API — Next Page / Previous Page / Set Page Index / On Page Changed — works unchanged, and the Ink Page Reader (and the demo Ink Page Interactor) treat it exactly like a single page. The inherited properties that do not apply to a pile are called out below.

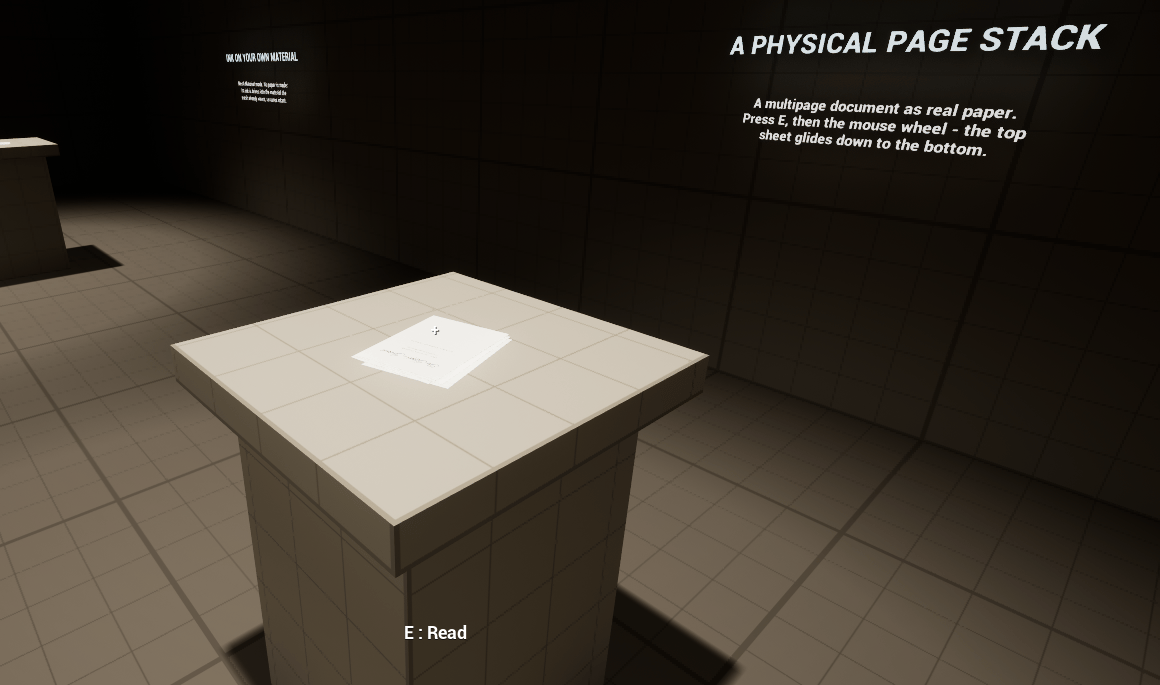

A stack of paper sheets on a podium in the Inkwell showroom

The journal page stack on its podium in the showroom map.

There is a working example at /Inkwell/Examples/Blueprints/BP_InkwellJournalStack, wired to the sample journal document /Inkwell/Examples/PD_InkwellJournal — it is one of the podium exhibits in the showroom map /Inkwell/Maps/L_InkwellShowroom. Enable Show Plugin Content in the Content Browser to see them, and read the examples tour.

​
What a physical stack actually is

The pile is derived state, rebuilt from the document rather than saved. Concretely:
  • One StaticMeshComponent per visible page is created at runtime — and for the editor preview — attached to the actor’s root component and marked transient. The pile is therefore laid out in the root’s local space: it stacks along the root’s local Z, so place the actor with its Z pointing up out of the table.
  • Sheet count is the page count, capped at Max Visible Sheets. With no document, no root component, or no pages, there are no sheets at all — unlike the base component, a stack with no document shows nothing rather than a blank sheet.
  • Every sheet is scaled from the 100 cm sheet mesh to the real paper size: Get Effective Page Size Cm, which is the document’s own size × the inherited Page Scale. There is no separate sheet size to disagree with the pages.
  • Each sheet is two-sided paper. A page with no authored back shows the front’s ink mirrored through on the underside, the way thin paper does; a page with an authored back (see two-sided pages) shows that back’s own bake instead. Either way the pile looks right from below and at an angle.
  • The sheets are not obstacles. See collision.
Do not attach anything to individual sheets or store references to them. They are created, destroyed and re-baked as you turn pages, and they are never saved into the level. Read them through Get Sheets at the moment you need them.

​
Properties

Everything from Ink Page Display is inherited and behaves the same — Document, Page Index, Page Scale, Apply On Begin Play, Loop Pages, Can Be Picked Up, Preview In Editor. On top of those, under Inkwell → Stack:
The inherited Procedural Paper toggle is grayed out here: a stack always spawns its own sheets, so the base component’s single fallback sheet never applies. The inherited Target Mesh, Page Face and Material Slot are not used by the pile either — each sheet is its own target, single-material, with the page always drawn into slot 0.

​
How the pile is shaped

Each deeper sheet is offset from the one above it: down by Sheet Gap, sideways by Fan Splay, and twisted by Fan Angle. Splay and twist alternate direction per sheet and grow in magnitude with depth, which is what stops a splayed pile from leaning off to one side while still letting deeper sheets peek out further. The top sheet has no splay and no twist — only Stack Yaw, which rotates the pile as a whole. Stack Offset places the pile relative to the actor’s root, so the actor’s origin can stay where it is useful (the desk surface, the pivot of a prop) while the paper sits somewhere else. Swapping in a different document re-deals the pile at that document’s dimensions, live in the viewport, and dragging Page Scale re-deals it larger or smaller as you drag — without re-baking a single page.

​
Page turns

In play, Next Page / Previous Page / Set Page Index do not swap a texture. The pile is re-dealt and the sheets move to their new slots, in the manner Page Turn Style picks:
  • Glide (the default) — every sheet, the turned one included, eases straight to its new place at Flip Interp Speed: the pile settles the way a hand squaring it up would leave it. The sheet on its way to the bottom passes through the ones above it, which at a tidy sheet gap reads as it sinking into the pile rather than as a defect.
  • Arc — deliberately theatrical. The sheets shuffling one place up or down still ease at Flip Interp Speed, but the sheet traveling from one end of the pile to the other flies instead: it swings clear of the pile’s footprint, rises to Page Turn Lift Cm above the top of the pile at the apex, tips over as it goes, and comes down onto its new slot — never slicing through the sheets in between. The clearance swing is computed from the paper itself (a full page width plus the pile’s total splay). The flight runs on a clock — Page Turn Duration seconds — not on an interpolation speed, so each stage happens in order.
  • Snap — no motion at all: every sheet is in its new place the instant the page changes. The cheap presentation.
Turn the page again mid-flight under Arc and the airborne sheet keeps its progress and re-aims rather than dropping out of the air, so fast page-flipping stays smooth. Switching Page Turn Style away from Arc while a sheet is airborne makes it give up the arc and glide home from wherever it is. The component only ticks while sheets are moving. Once everything has settled into its slot, ticking switches itself off. In the editor viewport, property edits always snap — dragging Fan Splay or Sheet Gap reshapes the pile instantly instead of gliding under the slider. In play, only a structural rebuild (a new document, a change in sheet count) snaps; ordinary page turns animate in the chosen style.

​
Long documents: the sliding window

At most Max Visible Sheets sheet meshes ever exist. A document with more pages than that shows a sliding window of consecutive pages around the current page, and re-bakes sheets at the window’s edge as you read. A 200-page document costs no more meshes than a 16-page one, and the pile always looks right from the top.
  • The window is a block of consecutive pages, positioned so the current page is inside it and never wrapping past either end of the document.
  • Each page keeps the same sheet across page turns, so only sheets at the window’s edge ever take on a new page.
  • A moving sheet is never re-inked. When the window slides, the new page is deferred until the sheet has settled at the bottom of the pile — otherwise you would watch the ink change on a sheet in mid-motion. (Under Snap there is no motion to protect, so bakes apply immediately.)
  • Editing the document at runtime bumps its content revision, which marks every sheet stale; they all re-bake on the next Refresh.

​
Collision: focus targets, not obstacles

Sheets exist for one purpose beyond being seen: answering the line trace that lets an interaction system focus the pile. Each sheet is set up as:
  • Collision enabled: Query Only — no physics collision at all. (Or No Collision when Sheets Block Traces is off.)
  • Object type: World Dynamic.
  • Responses: ignore every channel, then block exactly one — Sheet Trace Channel.
  • Overlap events off, and never affects the navmesh.
Pawn movement sweeps, physics impulses and camera probes all pass straight through the pile, while a trace on the right channel still hits it. These settings are re-applied whenever the pile is refreshed, so changing Sheet Trace Channel or Sheets Block Traces takes effect without rebuilding anything.
If your interaction system traces on a custom channel, set Sheet Trace Channel to that same channel. The sheets answer that one channel and nothing else, so a mismatch means the pile is never focusable — the trace passes through it as if it were not there, with no warning anywhere. The demo interactor’s Trace Channel has the same default (Visibility), so out of the box the pair agree.

​
API

Everything from Ink Page Display works unchanged. The stack adds one node: Three inherited functions are stack-aware:
  • Resolve Target Mesh returns the top sheet — the one showing the current page. With no sheets (no document assigned) it falls back to the base component’s rule.
  • Refresh rebuilds the pile: sheet count, mesh and collision, page assignment, layout, and any stale bakes.
  • Apply Page Size re-deals the pile at the current sheet size and nothing else. Every sheet already carries the right page, so only transforms are rewritten. This is the cheap path a Page Scale change takes.

​
Build a readable journal on a table

1

Author a multi-page document

Create an Ink Page Document, add the pages, and save with Save Document. See documents and the Page Editor. The document’s Page Width Cm decides how big the paper is, so set it to something journal-sized (14–16 cm) rather than A4.
2

Give the journal its own actor

Create an empty Actor Blueprint — journal, not table. Add a Scene component as the root if it has none, then Add Component → Ink Page Stack, and assign your Document.Keep the stack on its own actor. The Ink Page Reader floats the whole actor up to the camera when the player reads it, so a stack parented to the table actor would take the table with it.
3

Place it and orient the pile

Drag the actor into the level and sit it on the table, with the actor’s Z pointing up. The pile appears in the viewport immediately — Preview In Editor is on by default.Rotate the actor so the paper faces the right way, then use Stack Yaw to spin the pile in its own plane until the writing reads upright from where the player will stand. Stack Offset nudges the pile off the actor’s origin if you want the origin somewhere else.
4

Tune the pile

Scrub Page Index to confirm the sheets reorder. Then set the look: Sheet Gap for how thick the pile reads, Fan Splay and Fan Angle for how tidy it is (defaults are a neat pile; 2 and 4 give a rummaged desk), Page Turn Style for how a turn moves — try Arc for the theatrical flight. Cap Max Visible Sheets lower if the document is long and the pile only needs to look deep, not complete.
5

Wire reading into your interaction system

Add an Ink Page Reader to your player pawn and, from your own interact input, call Begin Reading Actor with the actor your trace hit — the stack is an Ink Page Display, so the pile focuses and reads like any other page. Route your page-turn input to the reader’s Next Page / Previous Page. If your trace runs on a custom channel, set the stack’s Sheet Trace Channel to match it. The full recipe is in the integration guide.For a quick test without wiring anything, add the demo Ink Page Interactor to the pawn instead — it finds or creates a reader and binds working keys. It is a demo/reference component, not meant to ship; check that its Trace Channel matches the stack’s Sheet Trace Channel (both are Visibility out of the box).
6

Play it

Walk up, look at the pile and press your interact key (E with the demo interactor): the journal floats up to the camera. Turn pages (Right/Left arrow or mouse wheel with the demo keys) and watch the sheets move in your chosen style. Put it back (Q with the demo keys) and it settles exactly where it was lying.Nothing focusable? Your trace channel and Sheet Trace Channel disagree — or, with the demo interactor, turn on its Draw Debug Trace: the line is green when it hits a readable page and red when it does not.

​
Working with the reader

The Ink Page Reader does the reading. Things worth knowing when the page being read is a stack:
  • The reader moves the actor, not the sheet. The whole pile floats up together, keeps its shape, and blends back to exactly where it was lying. This is why the stack wants an actor of its own.
  • Collision is disabled on the actor while it is being read, so a pile at the player’s face cannot be traced or bumped, and restored when the page is put down.
  • Page turns still animate while reading. The reader’s Next Page / Previous Page call straight through to the stack, so the sheets move right in front of the camera — and on documents with authored backs the reader reads in book order, front before back before the next page.
  • Fit to view works from the paper size. The reader frames the document’s printed size — the same Get Effective Page Size Cm the sheets are scaled by — so a journal-sized pile is held closer than a poster automatically.
  • Reading Rotation Offset on the reader is tuned for the Inkwell page sheet — a flat plane whose printed face points up. Stack sheets use that same mesh by default, so the default is right. If you set a custom Sheet Mesh with a different orientation, that is the property to adjust.
  • Physics-simulating components on the page actor are switched off for the ride and restored afterwards, so a pile you can knock about still reads correctly.

​
Editor preview

The stack previews in the level viewport like the base component: assign a document and the pile appears, scrub Page Index and the sheets reorder, drag the layout properties and the pile reshapes instantly. The preview bakes into a render target per sheet, never dirties the level package, and uses the same startup-retry behavior described under Ink Page Display. One preview shortcut: in the editor viewport the underside of every sheet shows the front’s ink mirrored through, even on pages with an authored back — press Play to see the authored back on the pile. In play, sheet bakes go through the per-world page cache, so several stacks showing the same document page share one bake.

​
