Ink Page Display (UInkPageDisplayComponent) is the component that puts an authored page into the world. Drop it on any actor, point it at an Ink Page Document, and the page is baked into an ink texture and multiplied over the paper by the Inkwell page material, so the writing reads as ink on the surface rather than a decal stuck to it. Everything else in the plugin is built on it: the Ink Page placeable actor owns one, Ink Page Stack extends it, and the Ink Page Reader reads from one on the actor it is handed. It is a production component — ship it. Two things it deliberately does not do: it has no input handling, and it does not care who turns the page. It exposes Next Page, Previous Page and Set Page Index for your own interaction code to call, and an On Page Changed event to react to. See the integration guide for wiring it into an interaction system you already have. (The bundled Ink Page Interactor drives these same calls, but it is a demo/reference component, not one to build your game on.)

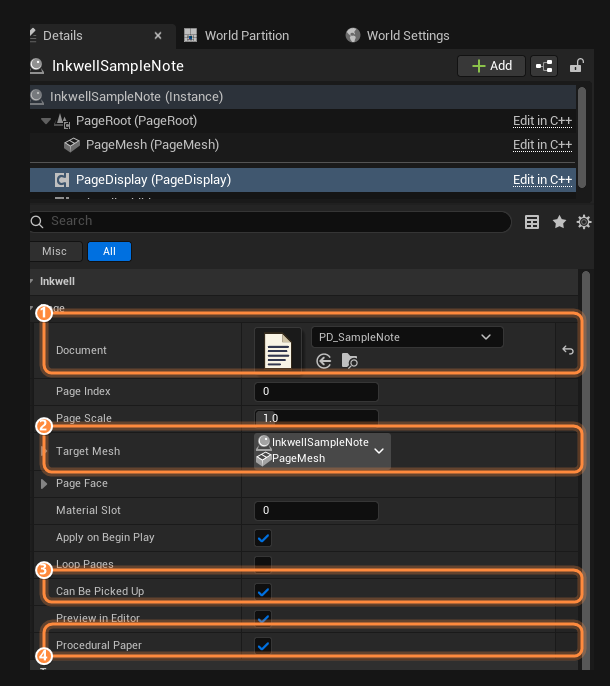

Details panel of an Ink Page Display component

An Ink Page Display component in the Details panel.

​
Adding it to an actor you already have

1

Add the component

Open the actor (Blueprint editor, or select a placed actor in the level), press Add Component, and pick Ink Page Display — it is in the Inkwell class group. It is an ordinary actor component and needs no C++.
2

Assign a Document

Set Document to a Page Document. If the actor already owns a mesh, the page appears on it straight away in the viewport — no Play needed, because Preview In Editor is on by default. If the actor has no mesh, a sheet of paper appears instead: see Procedural Paper.
3

Say which mesh, if there is any doubt

With one mesh on the actor there is nothing to do — skip this. With several, set Target Mesh to the one the page belongs on; otherwise the component takes whichever mesh comes first on the actor, which is rarely the one you meant. See how the mesh is chosen.
4

Check the material slot and the UVs

The page is applied to Material Slot 0 unless you change it. By default the face it lands on must have clean 0–1 UVs across the whole page area — if the writing looks stretched, smeared or cropped, this is why. For a mesh that was not unwrapped that way — a face parked in the corner of an atlas, an unwrap that runs sideways — open Page Face instead of re-unwrapping the mesh.
5

Turn a page

From your interaction code, call Next Page / Previous Page / Set Page Index on the component. Bind On Page Changed to play a paper rustle or update a “3 / 12” counter.

​
Properties

​
Functions

All of these are Blueprint-callable or Blueprint-pure, in the Inkwell → Page palette category.
Next Page and Previous Page both return false immediately when the document has one page or fewer, so calling them straight from an input event is safe.

​
Events

​
On Page Changed

Fires whenever the shown page changes: a successful Set Page Index, a Next Page or Previous Page that moved, a Set Document call, and the initial draw at Begin Play when Apply On Begin Play is on. Use it for page-turn audio, a page counter, or driving quest state off “the player reached the last page”.

​
On Page Size Changed

Fires when the paper’s physical size changes — a Page Scale edit, a Set Document bringing in a differently sized document, or the first time the size is applied. It only fires on a real change: the component remembers the last size it announced, so a Refresh that leaves the size alone is silent. Bind it to reposition whatever sits on or around the page — a frame mesh, a pinned label, a collision volume. It is what the Ink Page actor uses to keep its own sheet fitted.

​
How the component finds a mesh

The component draws onto exactly one mesh, chosen in this order:
  1. Target Mesh, if the pick resolves to something that is a MeshComponent (static or skeletal). Worth setting only when the actor carries several meshes — rule 2 covers the ordinary one-mesh actor without you touching anything.
  2. Otherwise the actor’s first mesh component, in component order — deliberately skipping the sheet Procedural Paper spawned. That exclusion matters: the spawned sheet is itself a mesh component on the actor, so counting it would make the component conclude the actor supplies its own paper and destroy the sheet on the next refresh.
  3. Otherwise the procedurally spawned sheet, if there is one.
  4. Otherwise nothing is drawn. When a document is assigned, a Warning on LogInkwell names the actor: “has no mesh to draw onto - set Target Mesh, add a mesh component to the actor, or enable Procedural Paper.”
A Target Mesh pick that resolves to something which is not a mesh — a scene component, a stale reference — does not disable the component. It quietly falls through to rule 2 and draws on the actor’s first mesh instead. If the page turns up somewhere unexpected, check that the pick is still valid.
The Target Mesh dropdown only fills in on an actor placed in a level. Opened inside the Blueprint editor it comes up empty, and no pick can be made — Unreal’s component picker resolves candidates against an actor, and in the Components tab you are editing a component template, which has no actor to search.That is also why the Component Property Name field underneath becomes editable there: the engine enables it precisely when the picker cannot resolve. It is the working path in a Blueprint. Type the mesh component’s variable name — PageMesh, not a display label — and it resolves at runtime the same way a pick would.
Resolve Target Mesh returns whatever this resolved to, so you can check it from Blueprint. Get Page Material returns the dynamic material instance the component made for that mesh.

​
Page Face — custom meshes

By default the page spans the target mesh’s whole 0–1 UV square — the flat-sheet assumption the bundled SM_PageSheet is built for, and the right answer for any mesh whose page face was unwrapped to fill 0–1. Page Face (FInkPageFaceMapping) exists for the prop that was not unwrapped that way: the sticky note whose face sits in a corner of an atlas, the board whose UVs run sideways, the thick note whose back face should stay bare. The whole mapping folds into one affine UV transform costing the material two vector parameters, so what it can express is exactly region plus quarter turns — not arbitrary warps. The bend of a curved sheet comes from the mesh’s own UVs, which is where it belongs: the text follows the surface because the UVs do.
An Ink Page Document carries an editor-only Preview Mesh with its own preview face mapping, so you can author against the real prop in the Page Editor and then copy the values onto the component’s Page Face when the placed prop uses the same mesh.

​
Where the paper comes from

What the component actually applies depends on the document’s Paper Mode — all four modes are covered on the paper page:
  • Texture and Procedural: the component creates a dynamic instance of the project’s page ink material and feeds it the baked ink plus the resolved paper texture — supplied or generated.
  • Custom Material: the document’s Paper Material — your own graph, carrying the MF_InkwellPageInk material function to receive the ink — replaces whatever the target slot wore.
  • Mesh’s Own Material: no paper from Inkwell at all. The component makes a dynamic instance of the material the slot already wears — per mesh instance, so per-instance textures and parameter overrides survive — and writes only the ink parameters onto it. The material must contain MF_InkwellPageInk; one without it shows no ink and raises no error — that is the contract. Unlike Custom Material, nothing is replaced.
In Custom Material mode, a paper material without the configured ink texture parameter (InkTexture by default) shows paper but no writing. Inkwell logs a one-time Warning on LogInkwell naming the material and telling you to drop MF_InkwellPageInk into its graph — check the Output Log if your custom paper stays blank.

​
The back of the sheet

A page can carry an authored back — its own layer stack for the other side of the physical sheet — and the display component shows it without being asked:
  • On the bundled SM_PageSheet (and any custom mesh that names a material slot Back), the back slot is dressed with the back’s ink and the document’s back paper.
  • On a mesh with no Back slot — a flat plane, a customer prop — the one page material carries the back itself, shown on back faces only, sampled mirrored the way real show-through reads.
  • A back that was never authored bakes nothing and allocates nothing; what an unauthored back shows is governed by Page Face → Ink On Back Face: the front’s writing showing through mirrored (on, the default — thin paper), or bare paper (off).
The display component always shows whichever side faces the viewer; actually turning a sheet over in the player’s hands is the Ink Page Reader’s Flip Page.

​
Procedural Paper

When the actor has no mesh of its own, the component supplies the paper: it spawns a static mesh sheet, attaches it to the actor’s root component, and scales it from the document’s own size. Add the component to an empty actor, assign a document, and you have a readable sheet of paper. That is the whole reason Procedural Paper is a single boolean and is on by default. The details worth knowing:
  • The sheet uses the project’s page sheet mesh from Project Settings → Plugins → Inkwell (/Inkwell/Meshes/SM_PageSheet by default — a 100 cm sheet, so document centimeters map straight to scale).
  • It is scaled to Get Effective Page Size Cm on every refresh, so editing the document’s Page Width Cm or dragging Page Scale resizes it live in the viewport.
  • Its collision is set once, at spawn: Query Only (no physics collision at all), object type World Dynamic, ignoring every channel except Visibility, which it blocks. Overlap events are off and it never affects the navmesh. So the player walks straight through it, the camera does not collide with it, AI sight and hitscan traces on project channels pass through it — and a Visibility line trace (the demo interactor’s default Trace Channel) hits the page.
  • With no document assigned you still get a sheet, sized A4 × Page Scale, showing blank paper — so a freshly added component immediately shows what it is about to print on.
The sheet blocks only the Visibility channel. If your interaction system traces a custom channel, the spawned sheet ignores it and your trace sails through the paper. The collision responses are applied once, at spawn, precisely so you can change them: call Get Procedural Paper Mesh and set your own channel response on the returned component — the change sticks. (This also pairs with the demo interactor’s Trace Channel property: whatever channel is traced, the paper must answer it.)
It never takes over a mesh you provided. The sheet is a fallback, used only when mesh resolution finds nothing on the actor. An explicit Target Mesh, or any mesh component already on the actor, wins and no sheet is spawned — so leaving the option on costs nothing on a prop, a book or the Ink Page actor. The moment the actor gains a mesh of its own, an existing sheet is destroyed.

​
When to turn it off

  • The actor is meant to draw nothing until something else happens, and you do not want a blank sheet floating there in the meantime.
  • The page belongs on a mesh that is not on this actor yet — spawned later, or attached at runtime — and you would rather see nothing than a stray sheet in the interim.
  • You are managing paper yourself and want the component to be purely a page API.
Turning it off on an actor with no mesh means nothing is drawn at all, which is exactly what the option is for.
The spawned sheet is transient: it is derived from the document, rebuilt on load, and never saved into your level. Do not reference it from saved data or attach persistent things to it, and treat Get Procedural Paper Mesh as a handle that is valid only until the sheet is destroyed — which happens when the option is switched off, when the actor gains a mesh, or when the component unregisters.
Ink Page Stack always spawns one sheet per page, so this option never applies there.

​
Sizing

Physical size is a property of the content, not of the component:
The document’s Page Width Cm is the only physical dimension anyone sets; its height is derived from the page’s pixel aspect ratio, so the paper is always the shape of the page you authored and writing can never come out stretched. Page Scale multiplies both dimensions together, which preserves that guarantee — there is no second size that could disagree with the first. So a document authored 21 cm wide is A4 everywhere it appears, and a pocket note authored 9 cm wide is small everywhere — with Page Scale left at 1. Set Page Scale to 2 on one placement and that copy alone becomes a desk-sized ledger. Apply Page Size is what pushes the size onto the paper. It re-fits the paper and fires On Page Size Changed; it does not touch the ink, because resizing does not change a single pixel of what is written. That is why it is safe to run on every tick of a slider drag, and why editing Page Scale in the Details panel resizes the sheet live without ever re-baking or turning a page. Setting Page Scale from Blueprint does not apply itself. Call Apply Page Size after it (or Refresh, which also re-bakes and is far more expensive).
Inkwell only resizes paper it made. On the spawned sheet, Apply Page Size rescales the sheet directly; the Ink Page actor re-fits its Page Mesh; Ink Page Stack re-deals the whole pile. When the page is drawn onto a mesh you supplied, the component never touches your transform — it only changes the size it reports and fires On Page Size Changed. Scaling the prop is yours to do, and that event is the hook for doing it.

​
Which material slot the ink lands in

The baked page is applied with SetMaterial on the resolved mesh, into Material Slot (default 0). In Texture and Procedural paper modes the component creates a dynamic instance of the project’s page ink material (/Inkwell/Materials/MI_PageInk by default, repointable in Project Settings) and sets the ink texture, paper texture, tints and ink strength on it; the other paper modes swap what the instance derives from. No other slot on the mesh is touched — with one exception: a slot named Back, which is how the sheet’s underside is dressed. Set Material Slot when the page belongs on the second material of a multi-material prop: a book cover mesh whose pages are slot 1, a clipboard whose paper is slot 2. The bundled sheet’s slots are Front (slot 0), Back and Edge, so on the procedural sheet leave it at 0. Grab the instance with Get Page Material if you want to drive material parameters yourself — an ink fade-in, a wetness or burn parameter of your own. It is recreated on every refresh, so read it again after one.

​
With no document

The component does not leave stale ink in the slot. With Document unset it applies the page material with the project’s blank-ink texture and the paper texture switched off, so the mesh shows plain paper. Assign a document later with Set Document and the page appears.

​
Editor preview

With Preview In Editor on (the default), the page renders in the level viewport as you edit: assign a document, scrub Page Index, drag Page Scale, and the mesh updates without pressing Play. Editing the document in the Page Editor updates every placed page using it, immediately. Authored backs preview too, on the sheet’s Back slot.
  • The preview is cosmetic. Neither the sheet nor the material assignment dirties the level package, so opening a map full of pages never demands a save.
  • It bakes into one reused transient render target per component (plus a second for a page with an authored back), rather than allocating a new one per refresh.
  • A Page Scale edit takes the cheap path. In the Details panel it calls Apply Page Size only — no re-bake — which is what lets the paper follow the slider. Any other property edit triggers a full Refresh.
  • During editor startup the Slate renderer can briefly be unavailable and the bake fails. The component retries on the core ticker up to 8 times with an exponential backoff, from 0.25 s to 32 s (about a minute in total). If it still cannot bake, it logs a Warning on LogInkwell and the sheet refreshes the next time it is edited or the map is reopened.
  • In game and PIE the preview path is not used. Pages bake through the per-world page cache, which shares one bake between every display showing the same document page — see rendering.
Check the Output Log first: every misconfiguration this component can detect logs a Warning on LogInkwell. Then work down this list:
  • No mesh. The Warning reads has no mesh to draw onto. Set Target Mesh, add a mesh, or leave Procedural Paper on.
  • Procedural Paper on, but no sheet. The actor needs a root component for the sheet to attach to; an actor with no scene root gets its own Warning saying so.
  • Preview In Editor off. Nothing draws outside of play. Turn it on, or press Play.
  • Apply On Begin Play off. In game, nothing is drawn until you call Refresh yourself.
  • Wrong material slot. The ink went into a slot you cannot see. Try 0.
  • Custom paper material shows no writing. The material lacks the ink texture parameter — the LogInkwell Warning names it. Drop MF_InkwellPageInk into the graph.
  • Editor just started. Give it the retry window, or touch any property to force a refresh.

​
